Rollout Isolation Floor System

Arclight Cinemas, TD Garden Boston MA

Original Noise Problem
A multi-level movie theater complex was being built at the TD Garden. This would require a noise-control solution to keep sound from traveling between theaters.

Solutions/Materials Used
SVA supplied and installed a two-inch thick rollout isolation floor system, on top of which a 4” concrete slab was poured to create the finished floor. SVA was able to meet the targeted STC rating of 62.

Manufacturer
SVA Inc.

Architect & Acoustical Consultant
Clockwork, Kubicki

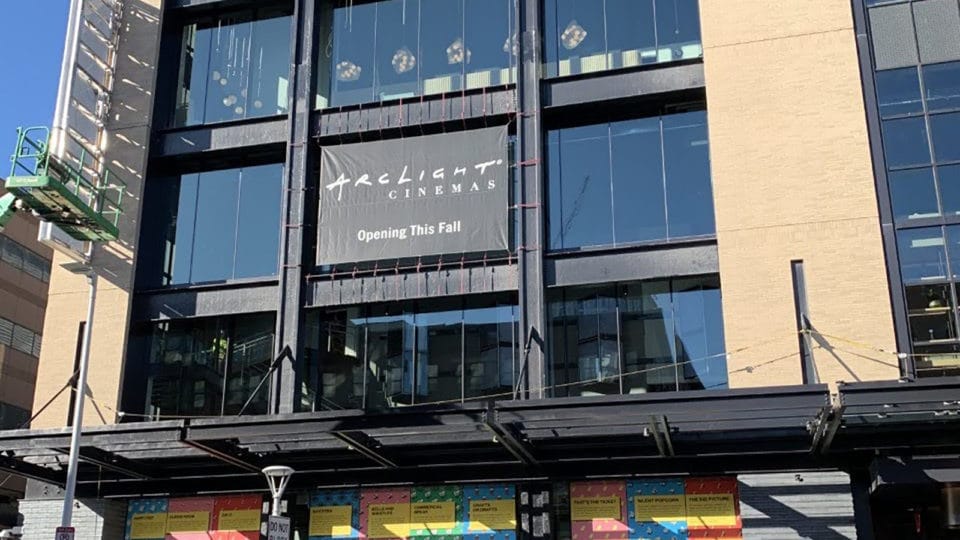

TD Garden building facade highlighting architectural noise control solutions for a movie theater environment.

Project Gallery

Installation of a rollout isolation floor system featuring resilient pads on a subfloor for noise control in a movie theater.
Technical architectural floor plan showing the layout and sound isolation zones for the ArcLight Movie Theater at TD Garden.

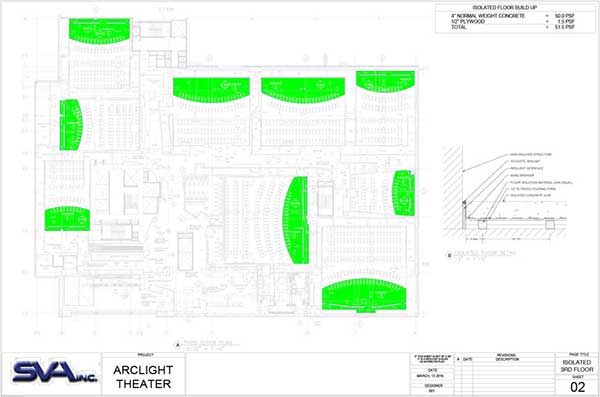

Technical floor plan of the ArcLight Movie Theater at TD Garden, showing the layout of multiple cinema screens and sound isolation zones.
TD Garden building facade highlighting architectural noise control solutions for a movie theater environment.
